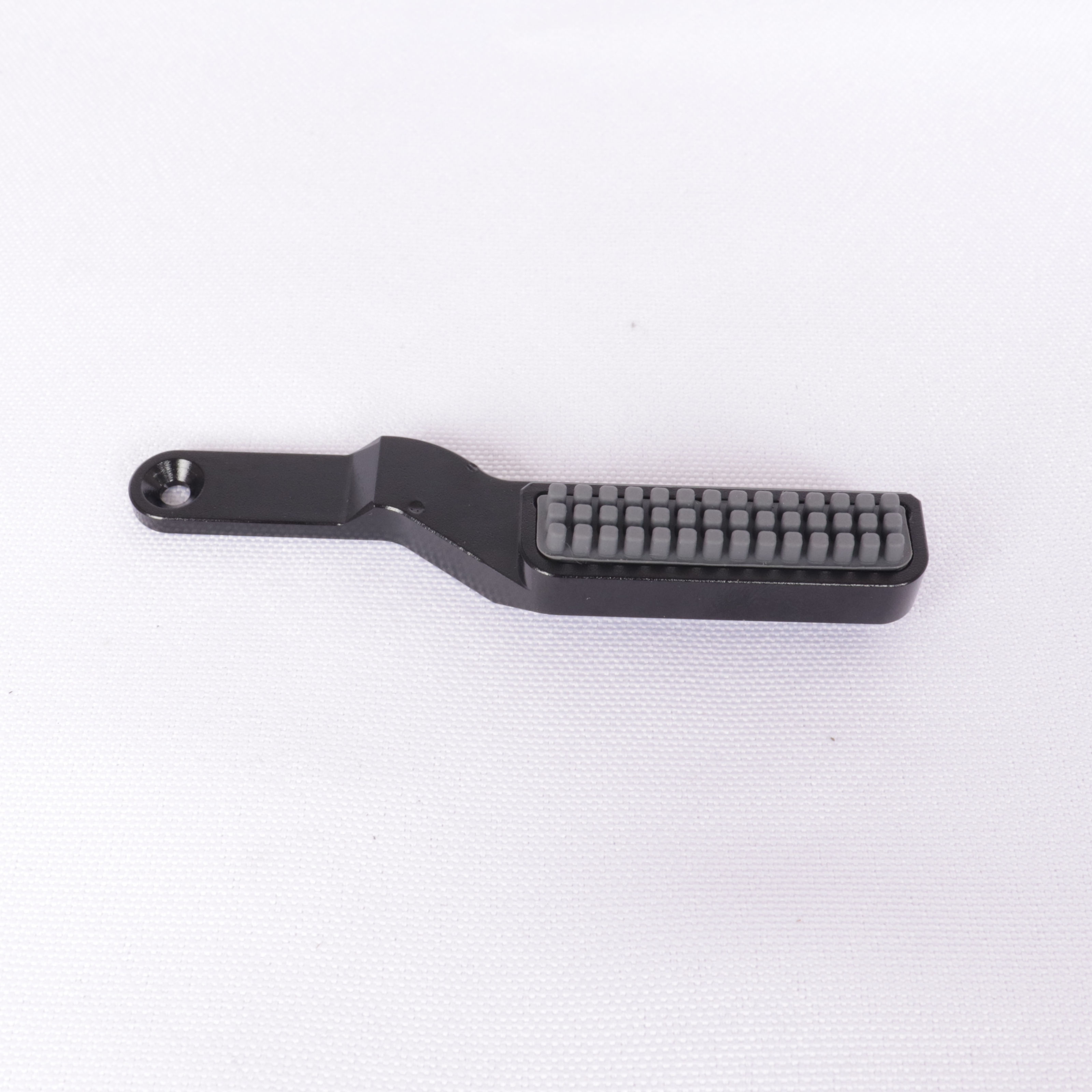

Prusa Core One Nozzle Rubber Wiper with Aluminum Holder

1.Assembly Instructions

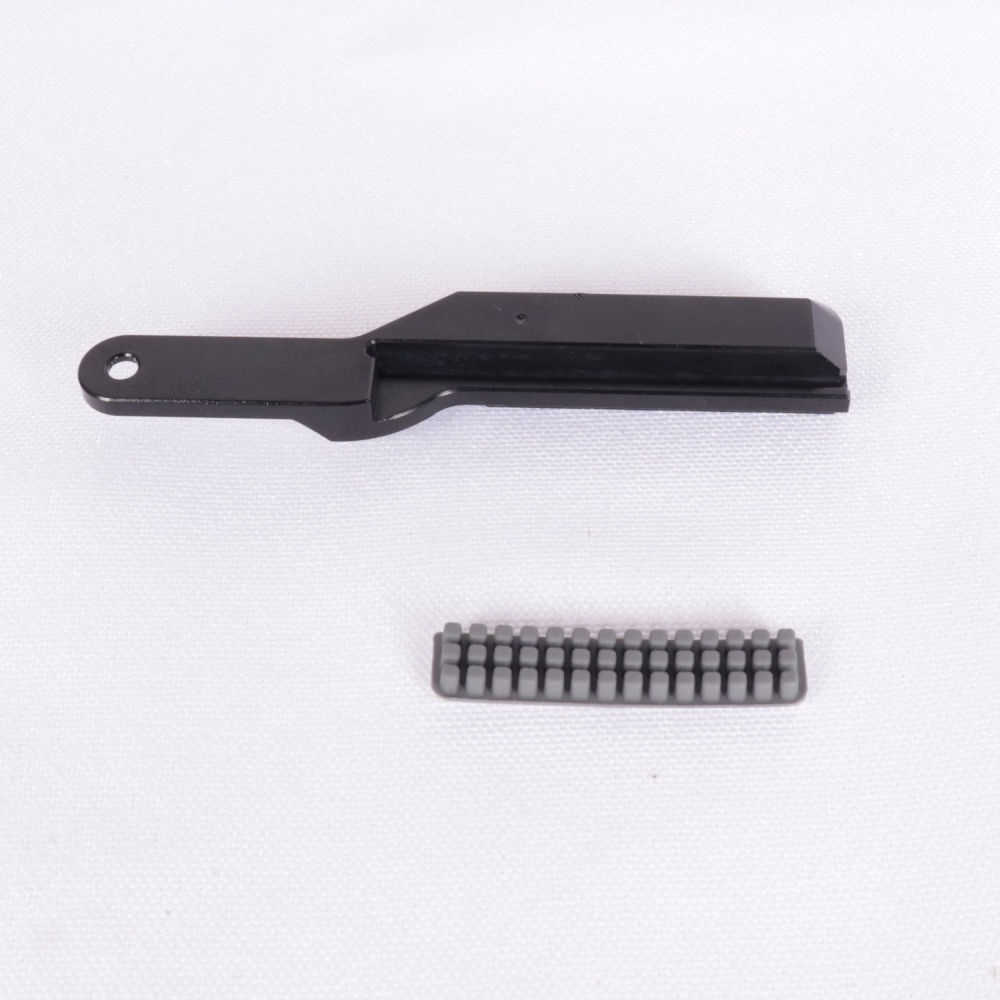

Step 1 – Attach Silicone Brush

• Peel adhesive backing
• Stick the brush onto the flat surface

Step 2 – Secure the Assembly

• Insert M3 screw
• Tighten gently (do not overtighten)

2. Installation on Printer

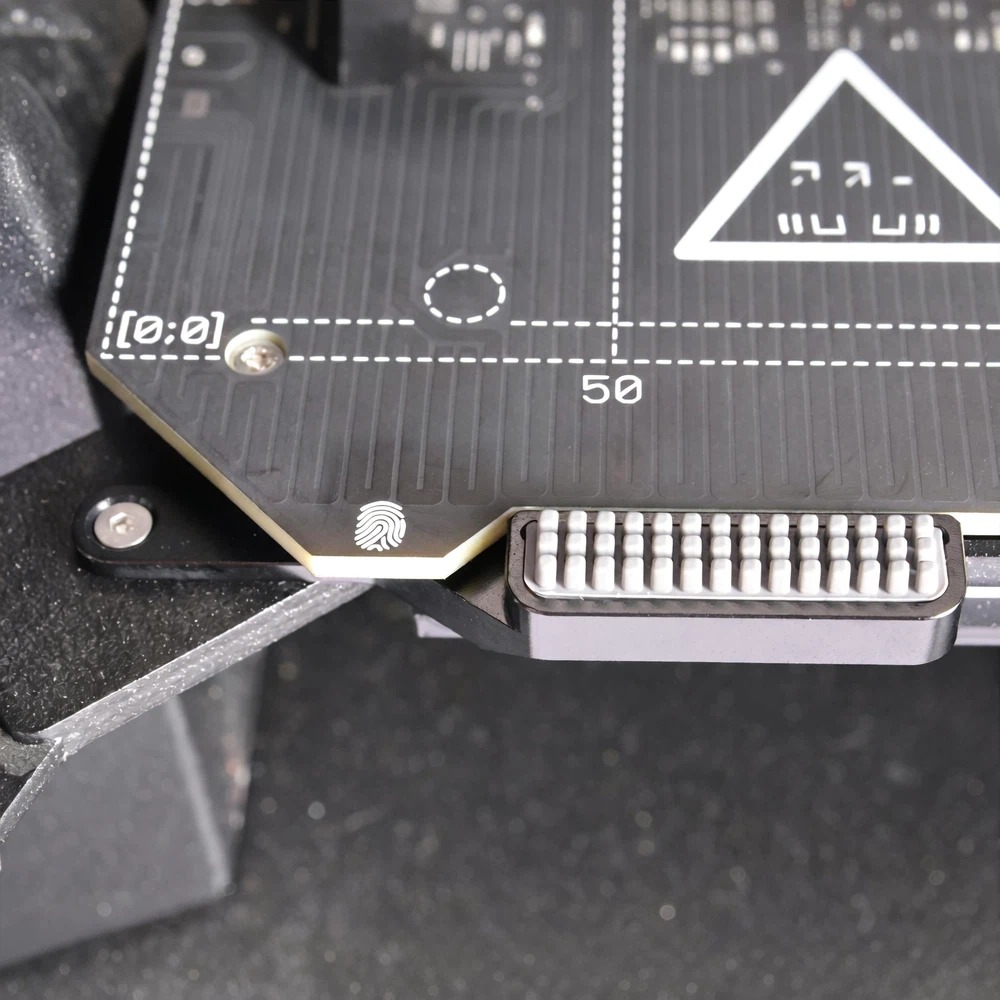

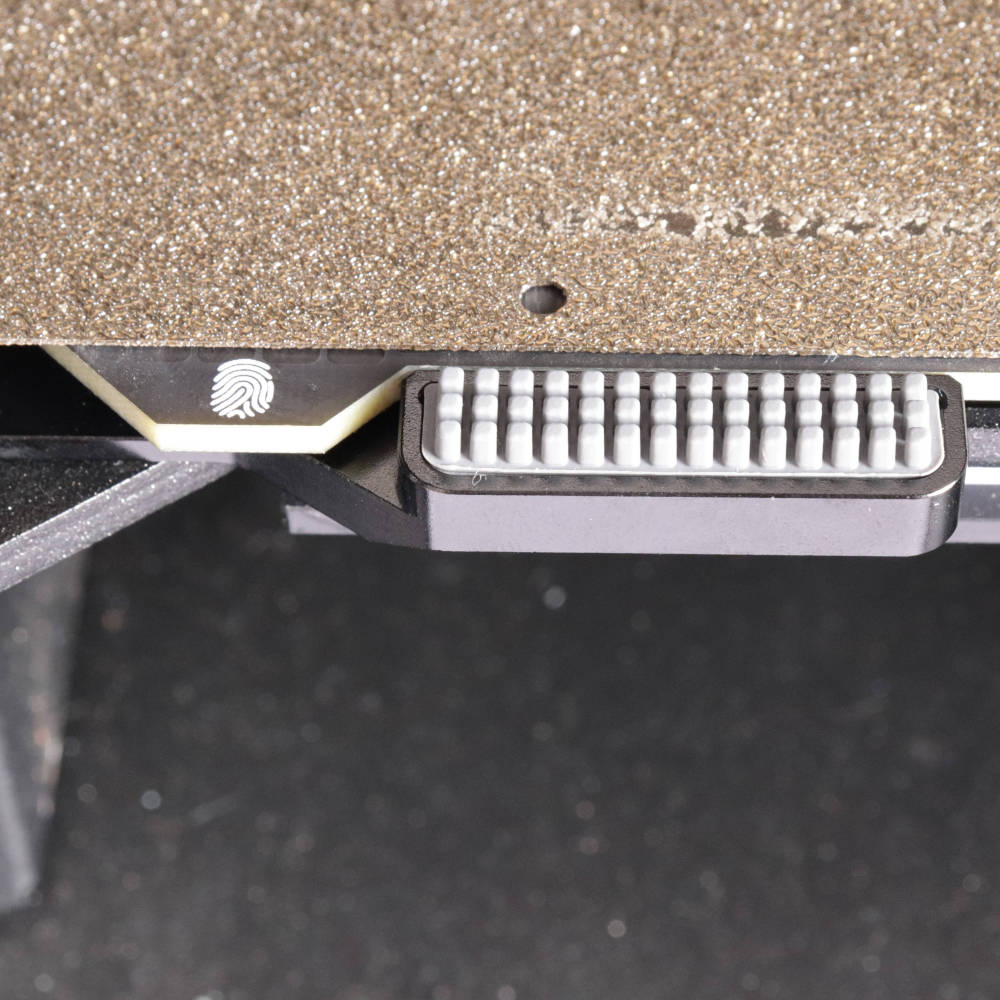

• Mount the wiper near the front edge of the bed
• Ensure:
  • No collision with print head
  • No interference with bed movement

⚠️ Always manually test movement before running prints

3. G-code Setup (IMPORTANT)

To enable wiping, modify your start G-code in PrusaSlicer.

Insert BEFORE or AFTER:

Add:

; Nozzle Wiper
G0 X210 Y-14 Z1.5 F3000
G0 X168 Y-16 Z0.5 F3000
G0 X168 Y-14 Z0.5 F3000
G0 X210 Y-16 Z0.5 F3000
G0 X168 Y-14 Z0.5 F3000
G0 X168 Y-16 Z0.5 F3000
G0 X210 Y-14 Z0.5 F3000
G0 X210 Y-14 Z0.5 F3000
G0 X168 Y-16 Z0.5 F3000
G0 X168 Y-14 Z0.5 F3000
G0 X210 Y-18 Z0.5 F3000
G0 X168 Y-16 Z0.5 F3000
G0 X168 Y-16 Z0.5 F3000
G0 X210 Y-14 Z1.5 F3000
