Designed and open-sourced by K. Hart aka Hartk, the Voron SteatlhBurner Toolhead PCB is the latest version available for the NEW StealthBurner Extruder and it makes wiring the extruder toolhead easier and more serviceable for maintenance.

Features:

fully soldered and ready to use!

micro-fit type connector for heater and thermistor (direct compatibility with Revo and Rapido)

support for the new RGBW LEDs

support for the ERCF filament sensor

support for a plug-in external chamber themistor

input for the new 5015 blower parts cooling fan

input for the 4010 extruder fan

all connectors are now JST PH 2.00mm instead of JST XH of 2.54mm (we send them along with this product so you don’t need to buy them separetly.)

Along with this product you will receive all the connectors and terminals necessary to attach this PCB to your wire harness, including:

1x 14 Pin 2×7 microfit female connector

2x 2 Pin 1×2 microfit female connector

1x 2 Pin 2×1 microfit female connector

3x 3 pin jst-ph 2.00mm female connector

1x 4 pin jst-ph 2.00mm female connector

2x4 right angle female header (2.54 pitch)

2x4 straigh male pins (2.54 pitch)

20x molex microfit 3.0mm crimp terminals

20x jst-ph 2.0mm crimp terminals

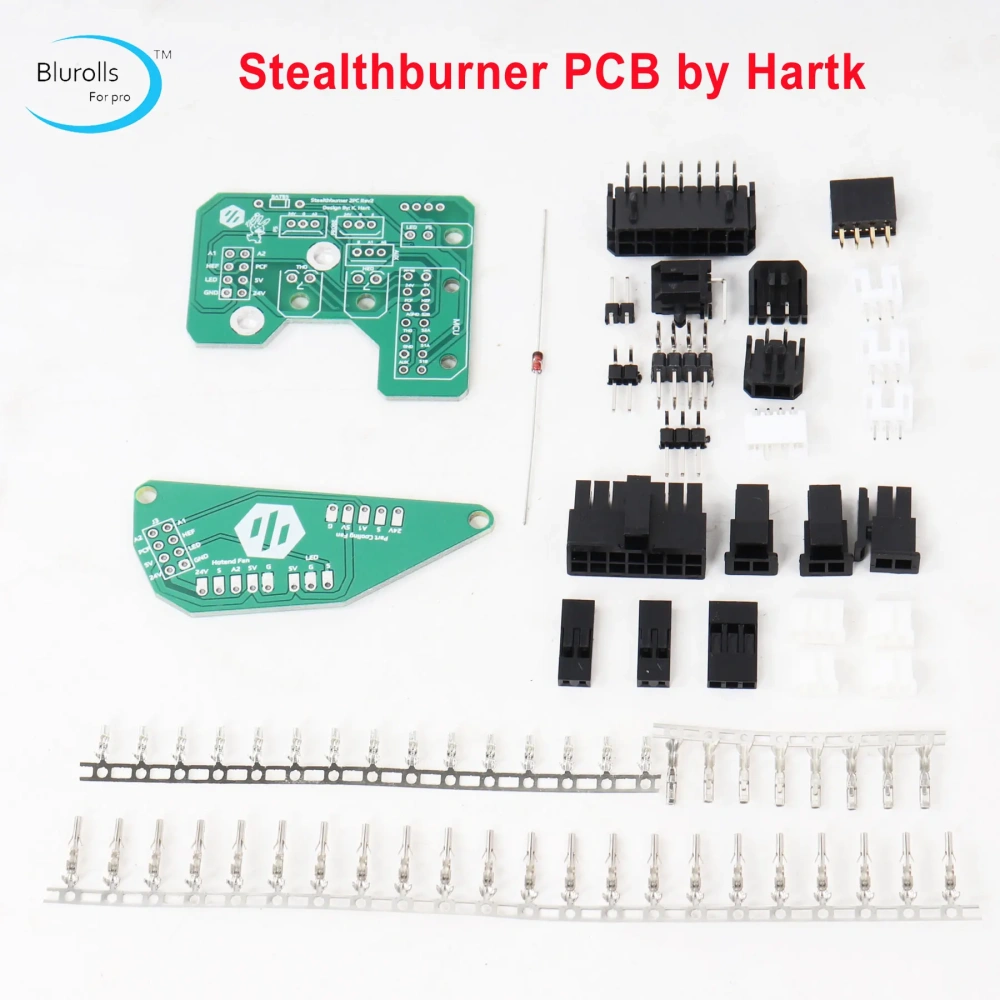

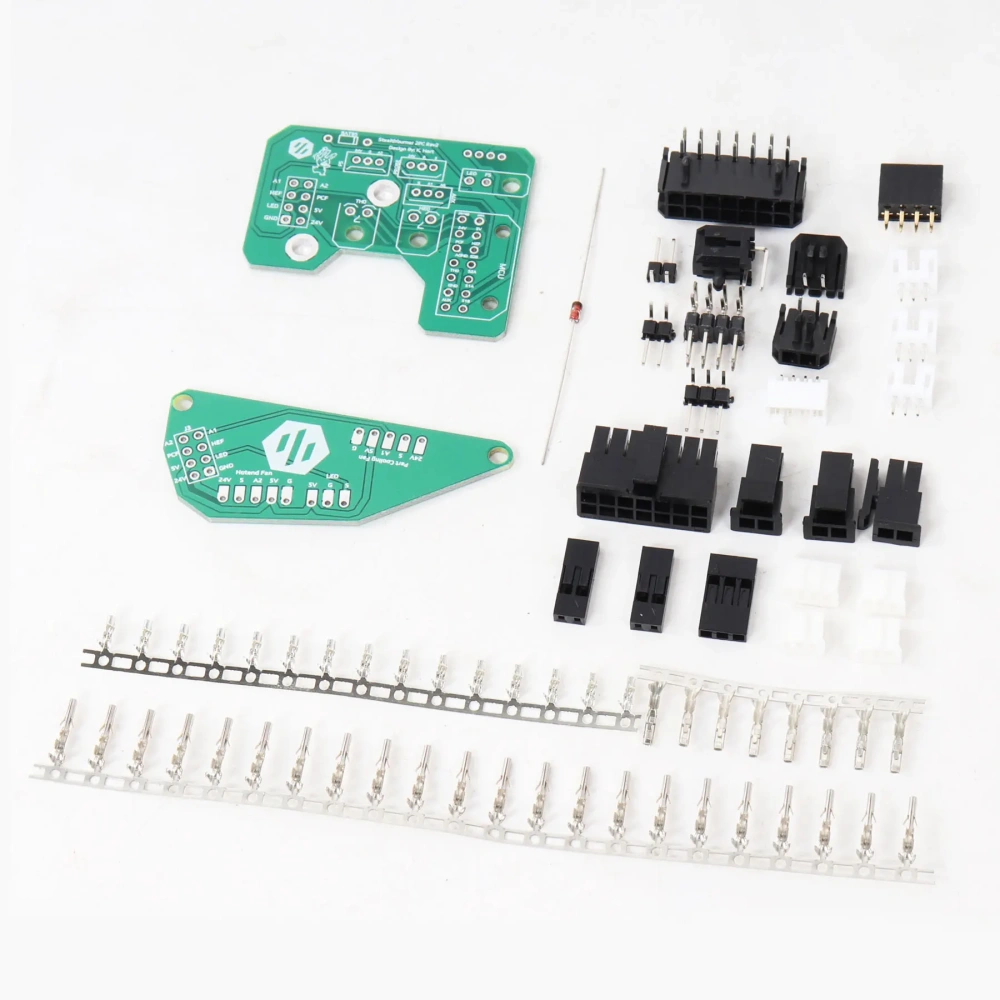

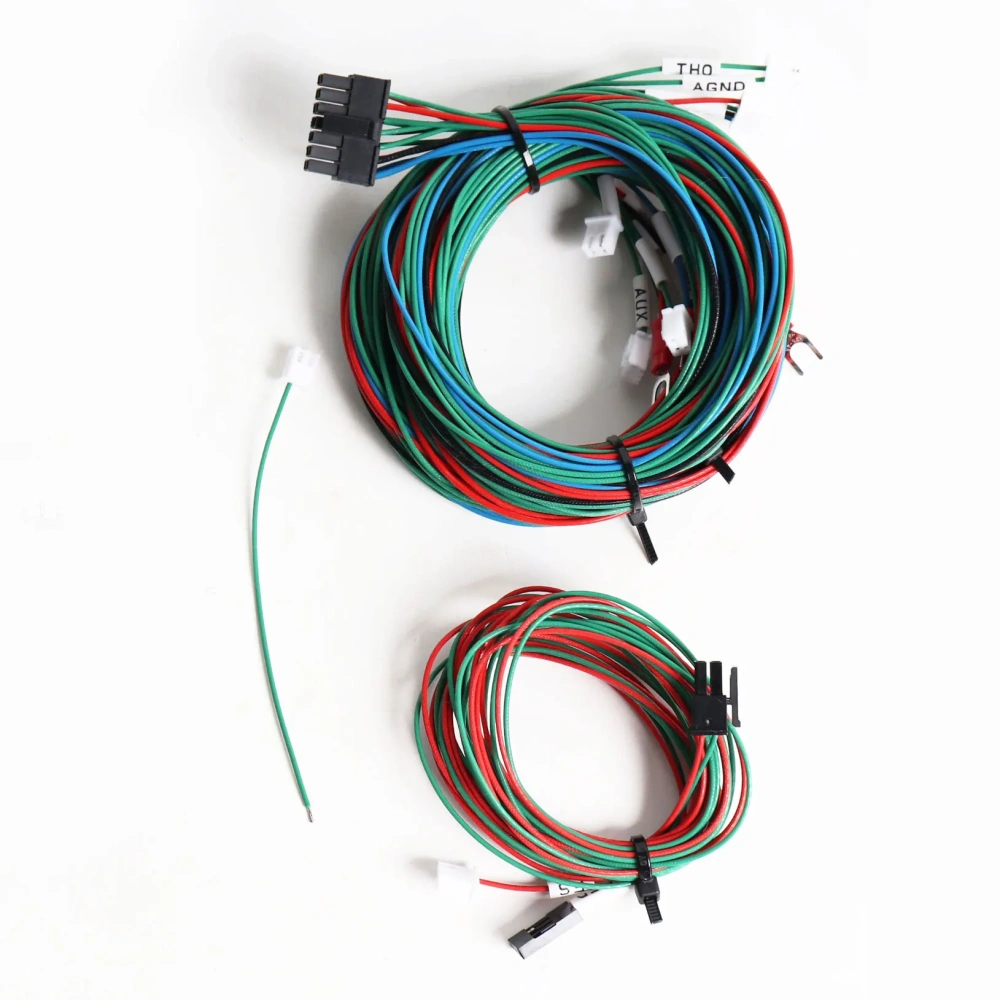

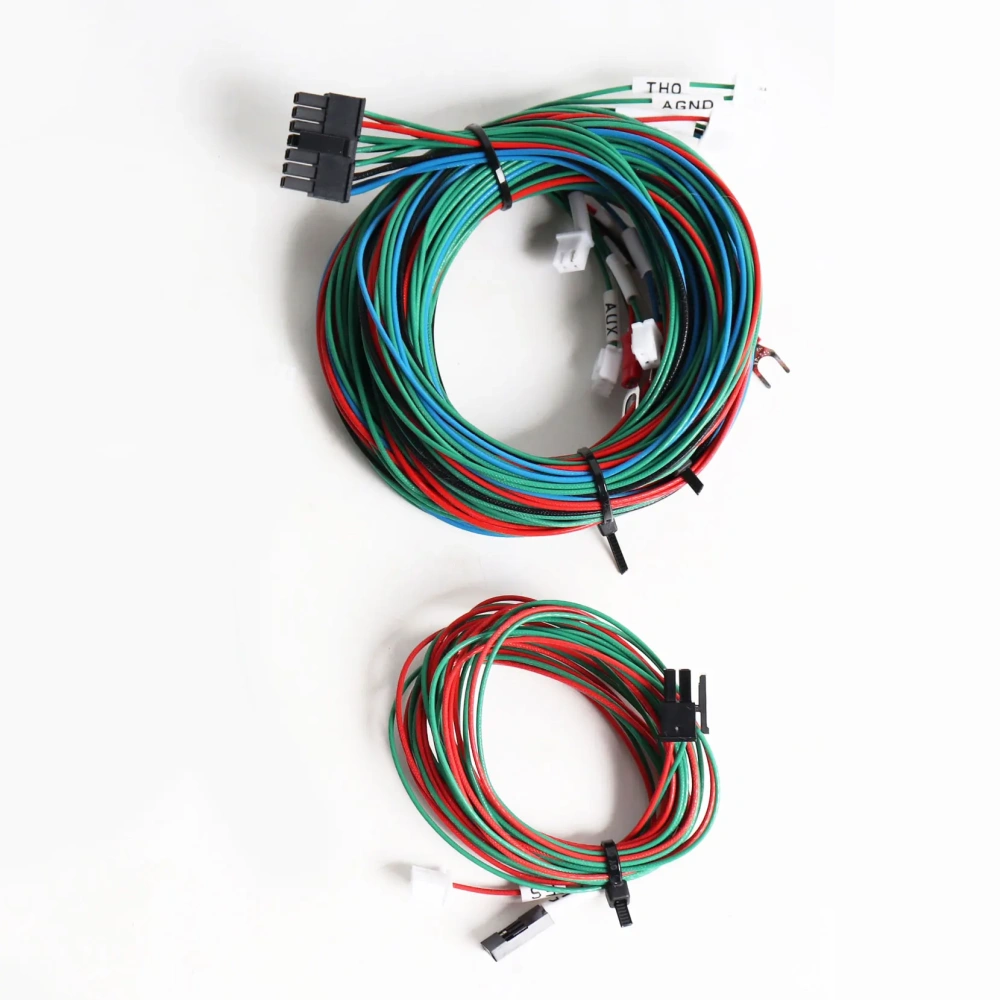

SB PCB Cable kit :about 2.4 meters PTFE

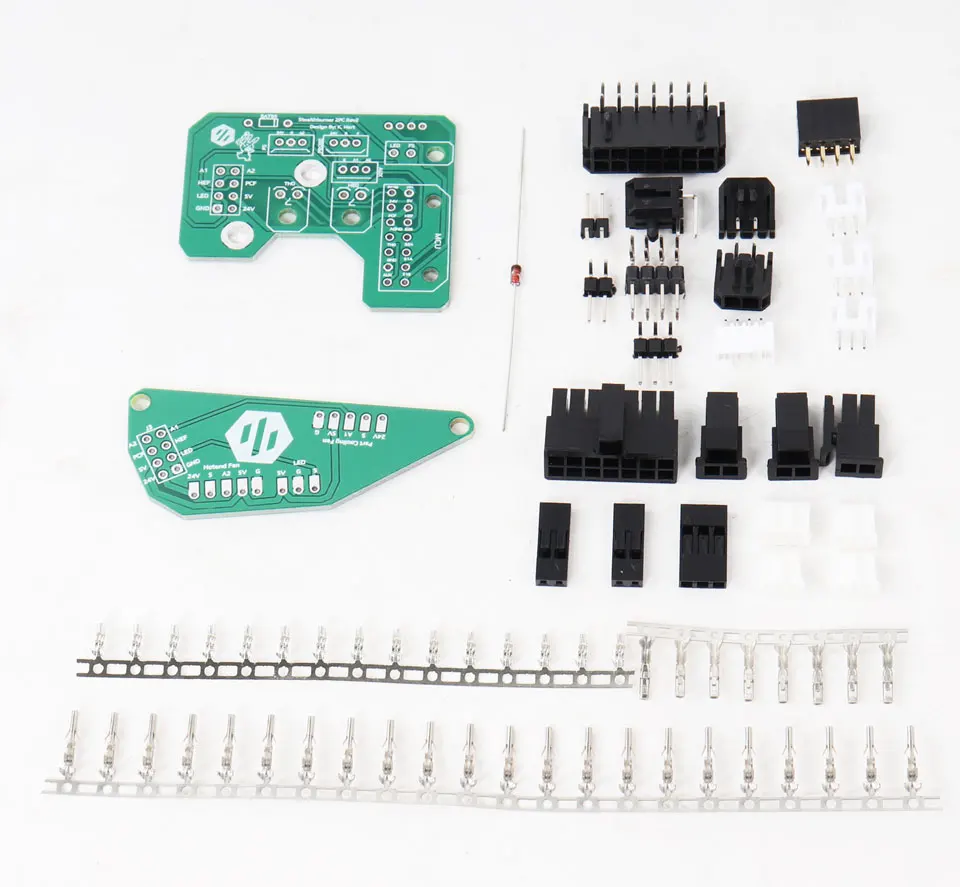

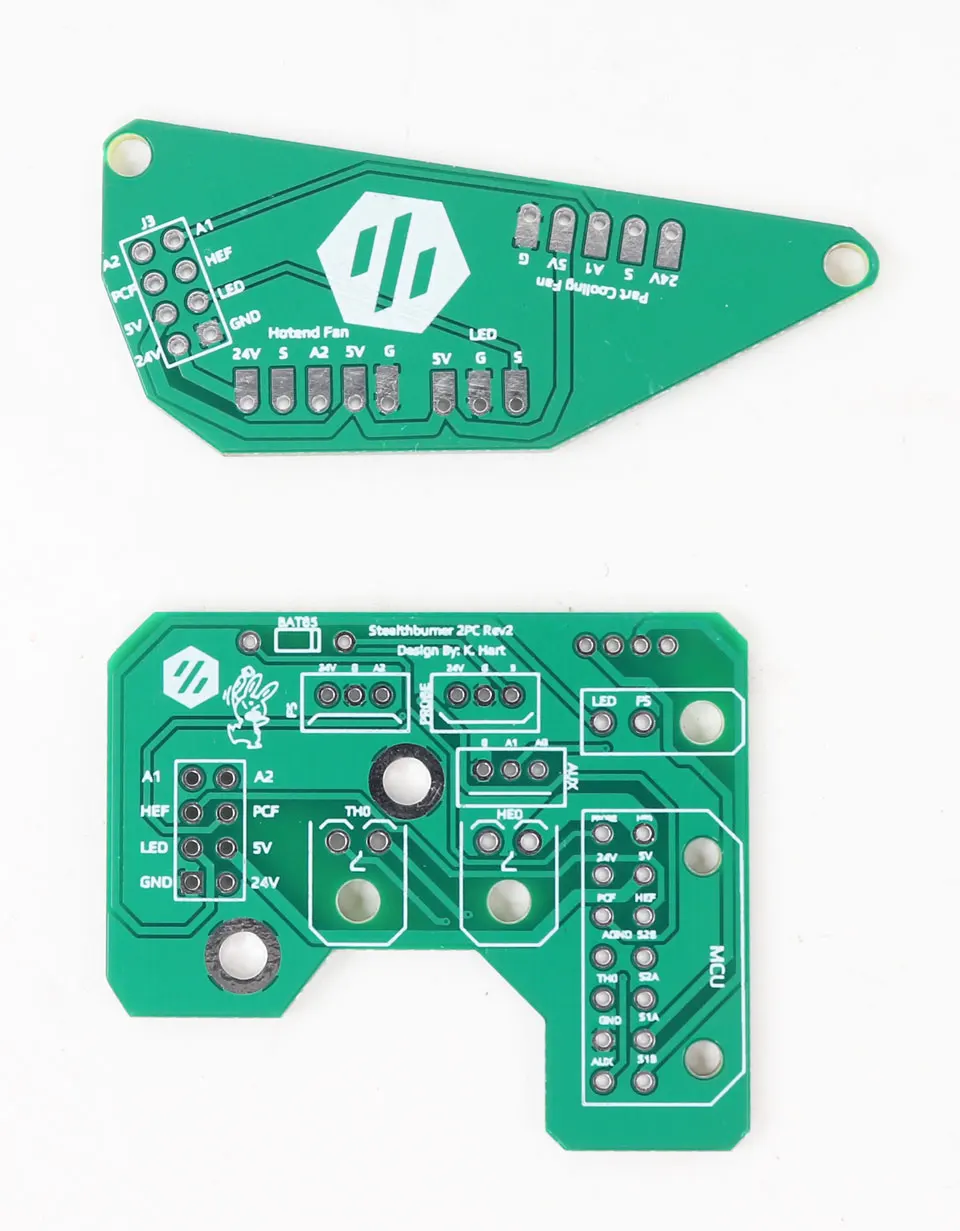

Unsoldered:

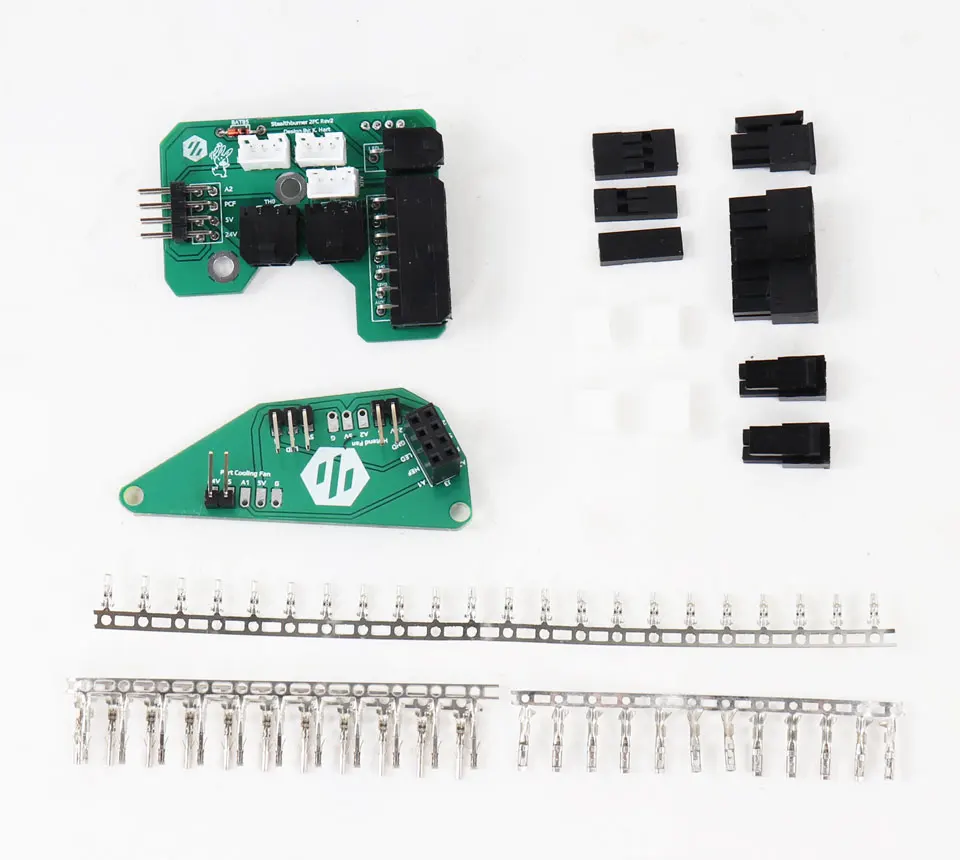

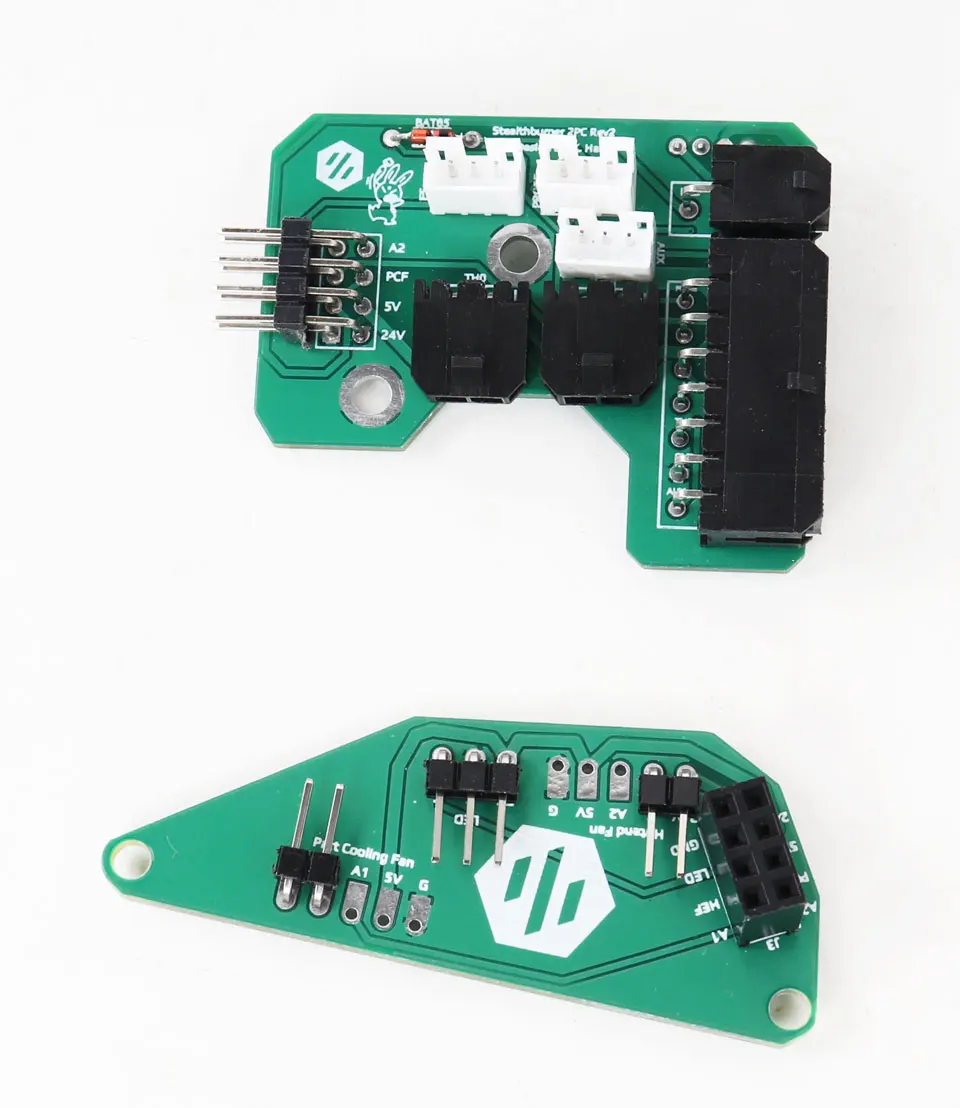

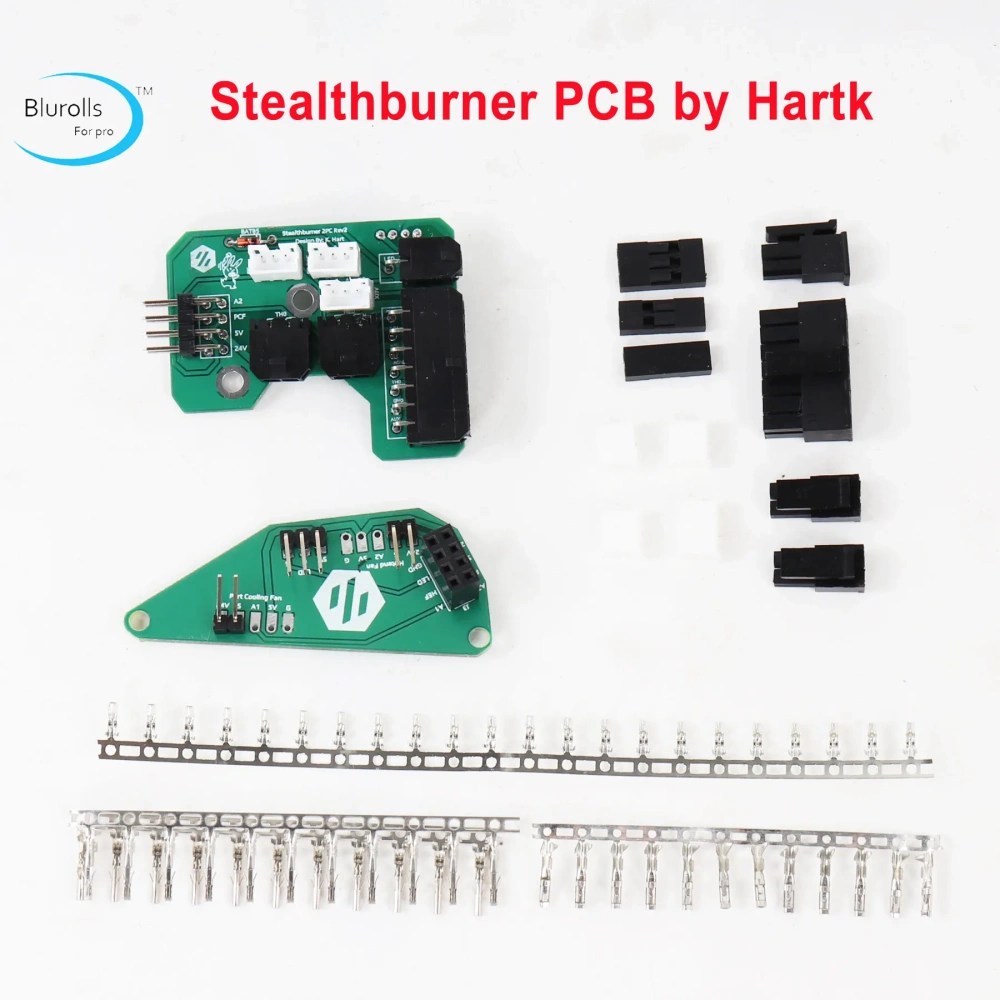

Full soldered:
